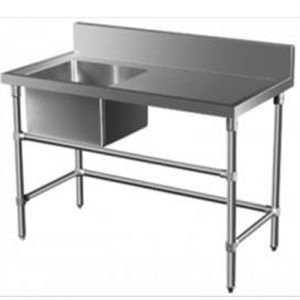

1100MM Single Bowl With Mild Steel Legs

Description

1. Overall Dimensions

• Length: 1100 mm
• Depth (front–back): 600–700 mm (700 mm common)
• Height: 850–900 mm (floor to top edge)

Example: 1100 × 700 × 850 mm

2. Bowl

• Number of bowls: 1
• Typical internal bowl size:
  • Length: 450–550 mm
  • Width (front–back): 450–550 mm
  • Depth: 250–350 mm

Example: 500 × 500 × 300 mm (L × W × D, internal)

• Corners: Rounded internal corners (easy cleaning)
• Layout: Bowl usually offset to one side with a small drain/work area on the other, or centered, depending on your requirement.

3. Material & Construction

• Stainless grade (recommended):
  • AISI 304 (food‑grade, corrosion‑resistant)
  • Budget: AISI 201 or 430
• Top & bowl thickness: 1.0–1.2 mm stainless sheet
• Finish: Brushed / satin on visible surfaces
• Edges:
  • Front & sides safety folded (double fold, no sharp edges)
• Backsplash:
  • 50–100 mm high rear upstand along length (typical for commercial sinks)

4. Frame, Legs & Shelf

• Frame/legs: Stainless steel tube
  • Typically 38 × 38 mm or 40 × 40 mm, 1.0–1.2 mm wall
• Legs: 4 legs
• Feet: Adjustable bullet feet (plastic or stainless) for leveling
• Undershelf (optional):
  • Stainless sheet 0.8–1.0 mm, fixed between legs for storage of pans/trays

5. Plumbing

• Waste outlet:
  • 1 × outlet (e.g. 1½” or 2″ BSP)
  • With basket strainer and plug
• Overflow: Optional
• Tap/faucet holes:
  • 1–2 holes on backsplash for mixer tap, or left blank as requested

6. Example ready‑to‑order spec line

1100 × 700 × 850 mm stainless steel single‑bowl sink, 1 bowl approx. 500 × 500 × 300 mm deep, top & bowl in 1.2 mm AISI 304 with 100 mm rear backsplash, 40 × 40 × 1.2 mm SS tube frame with 4 legs and stainless undershelf, adjustable bullet feet, 1 × 1½” waste outlet with basket strainer, tap hole(s) in backsplash as required.
